Key Findings

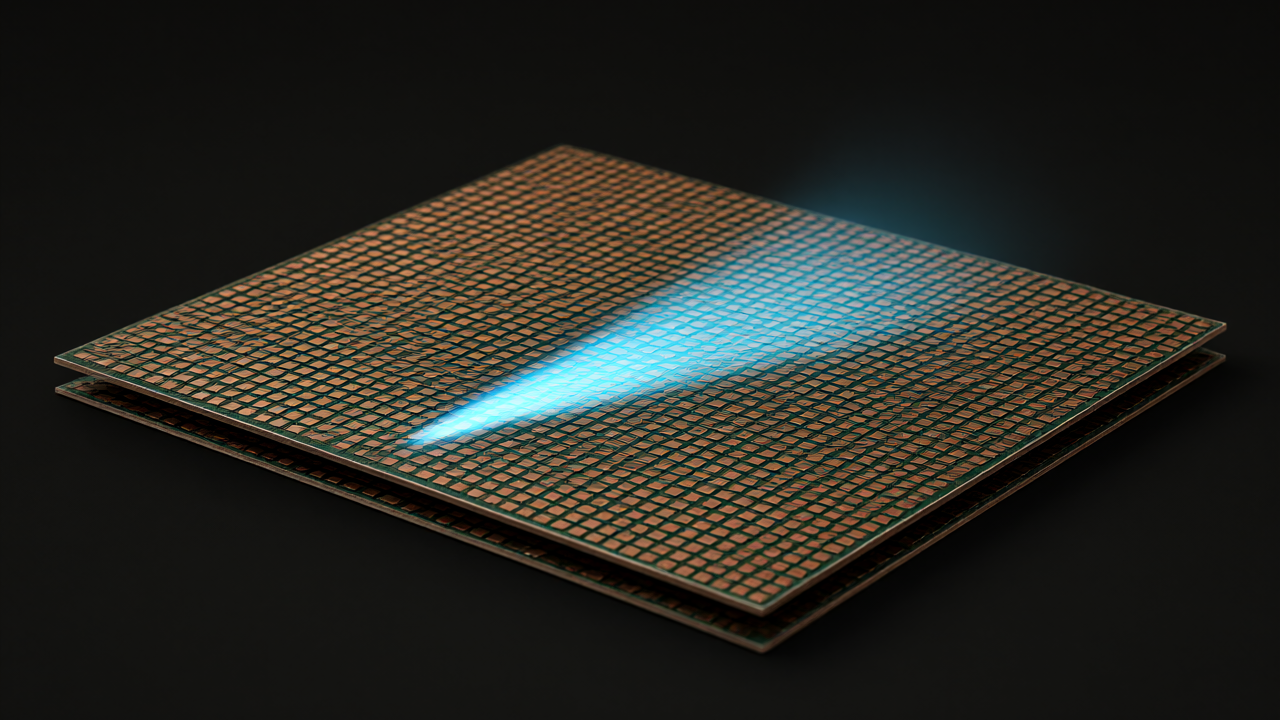

A study by H. Shi, W. Zhu, G. Hu and co-workers demonstrates a passive optical platform capable of simultaneous frequency filtering and wide-angle beam steering. Unlike traditional active metasurfaces, this device utilizes a controlled lateral slide between two complementary metasurface layers to redirect electromagnetic energy. The system achieves a scanning range of plus or minus 57 degrees while maintaining a sharp bandpass response between 26.5 and 29.5 gigahertz, with out-of-band suppression exceeding 20 decibels.
Technical Details
The device replaces local reconfiguration—typically handled by PIN diodes or varactors—with global geometric displacement. When the two layers are aligned, phase contributions cancel, and the beam propagates along the optical axis. Shifting one layer relative to the other creates a linear phase gradient across the aperture, which redirects the beam similarly to a prism.
- Architecture: Multiple stacked metallic and dielectric layers forming resonant elements.
- Design: The fifth-layer split-ring resonator utilizes two geometric degrees of freedom (split orientation and opening angle) to provide stable phase biases.
- Performance: Low insertion loss and stable phase relationships across the millimeter-wave passband.
Background & Context
Historically, spatial control (beam steering) and spectral control (frequency filtering) have followed separate research paths. Combining these functions usually requires active electronics, complex tuning mechanisms, or exotic materials, which increase power consumption and fabrication costs. This new approach creates a “two-dimensional frequency-angle selection window” where both parameters are controlled independently within a single compact element.
Significance & Outlook
This technology addresses spectral congestion in radar, satellite links, and 5G/6G networks by enabling beam-space multiplexing without stacking separate filters and phased arrays. Because the mechanism is material-independent and relies on geometry, it is highly scalable. The researchers note that the concept could be extended to terahertz and optical regimes using microelectromechanical systems (MEMS) for miniaturized mechanical translation.
Source: https://bioengineer.org/sliding-metasurfaces-steer-beams-and-filter-frequencies-with-no-electronics/
